Dear Uncle Colin,

I have a triangle with edge lengths of 9, 7 and 6 units. I need to find the area of the circumcircle. How do I do that?

Help! Euclidean Reasoning’s Off!

Hi, HERO, and thanks for your message!

I have a slightly cloggy method, and a possibly nicer one.

Get your clogs on

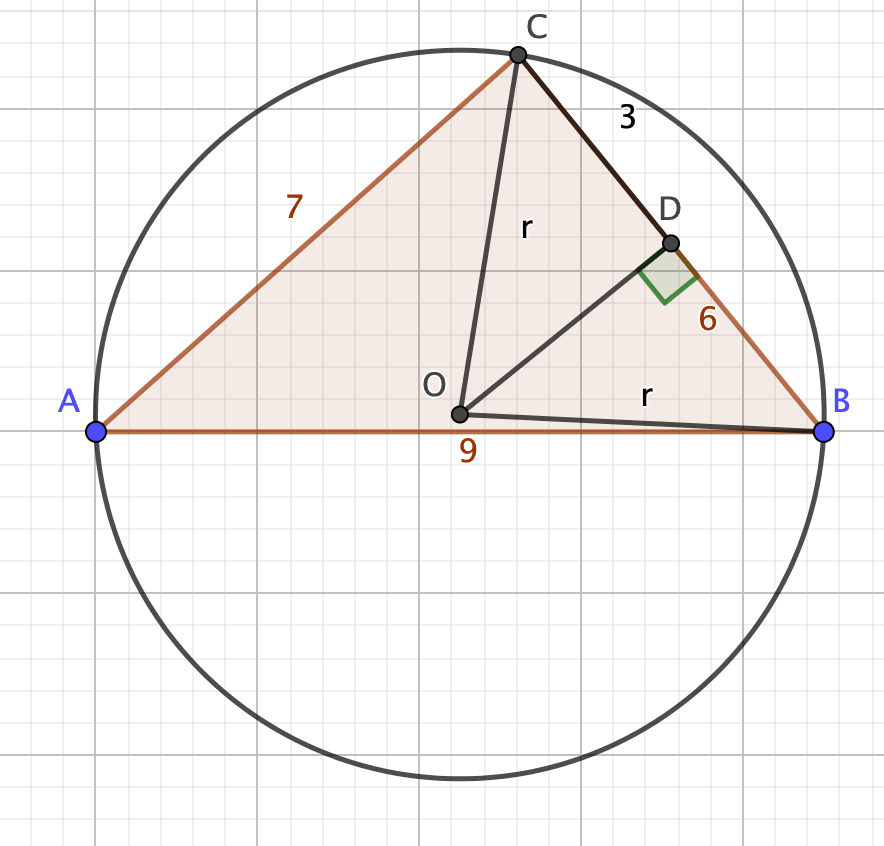

Here’s my picture:

The plan of attack is to pick an angle of the triangle – I’m going for A, the one opposite the side of length 6 units – and find its cosine using the cosine rule.

I can then pick out the isosceles triangle OBC (angle BOC is 2A), and split it in half to get the right-angled triangle ODB. Angle DOB is equal to A, so $\sin(A) = \frac{3}{r}$.

From the cosine rule, $\cos(A) = \frac{9^2 + 7^2 - 6^2}{2(9)(7)} = \frac{47}{63}$.

Obviously, we could work out the angle, throw that back into the equations, and figure out $r$. But it’s more work than we need to do: we can just rearrange and find $r^2$ directly.

We have $\cos^2(A) + \sin^2(A) = 1$, so $\frac{3^2}{r^2} = 1 - \frac{47^2}{63^2}$.

That works out to $\frac{9}{r^2} = \frac{63^2 - 47^2}{63^2}$, so $r^2 = \frac{(3)^2(63)^2}{(16)(110)}$, using the difference of two squares.

The top is $189^2$, which is $(200 - 11)^2$, or $40,000 - 4,400 + 121$; that’s 35,721.

The bottom is 1760, so the area is $\frac{37,521}{1760}\pi$.

Whoosh

Hello, sensei, long time no see!

“You might not have seen me.”

I imagine you have a nice way to approximate that monster.

“Monster? Pah! The bottom is a multiple of 22 and the top is a multiple of 7, that’s a puppy-dog. The estimate is $\frac{5,103}{80}$, which is 63.8 or so.”

An insight

Alternatively, we know:

  • The area, $T$, of the triangle is $\sqrt{s(s-a)(s-b)(s-c)}$, where $s$ is the semiperimeter
  • It’s also $\frac{1}{2} bc \sin(A)$
  • The diameter of the circumcircle is $\frac{a}{\sin(A)}$ (this is what the sine rule measures)

These give:

  • $4rT = abc$
  • $r^2 = \frac{(abc)^2}{16s(s-a)(s-b)(s-c)}$

Here, $s = \frac{9+7+6}{2} = 11$, so $r^2 = \frac{(9^2)(7^2)(6^2)}{16(11)(2)(4)(5)}$.

There’s a 4 to cancel, and we get $r^2 = \frac{189^2}{1760}$, as before.

Hope that helps!

- Uncle Colin

* Edited 2022-12-29 to add a missing picture.
